This lesson starts at commit 52ad976f12300a37998296b9861bfa7bccabac4a.

6. Implementing more instructions

After the hopefully fun diversion in the last lesson, we are back to work. There are 40-ish instructions in the RISC-V base instruction set, and we have only implemented two so far. Let's bang out some more instructions!

Let's grab the RV32/64G Instruction Set Listings of the RISC-V docs.

First, let's just add variables for all the bit fields we don't have yet.

Now, let's remove the decoding logic we currently have and just start implementing the instructions from the RV32/64G Instruction Set Listings.

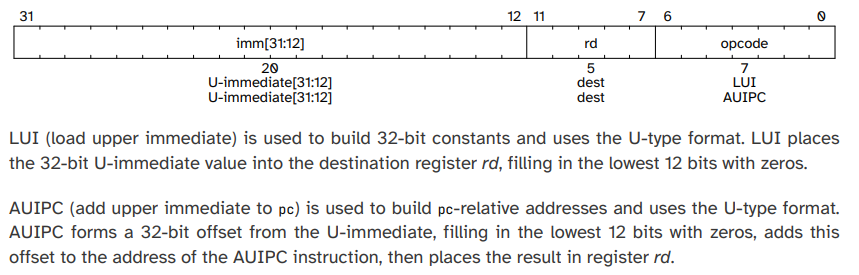

So we start with LUI and AUIPC. In Chapter 2 (RV32I Base Integer Instruction Set) of the RISC-V unprivileged architecture document, we find this:

In chapter 35, we see that the opcode field is 0110111 for LUI and 0010111 for AUIPC.

So, we start with LUI. We need to place the immediate value in the rd register. This is easy enough with the existing infrastructure.

AUIPC is similar, but the it adds the immediate to the address of the instruction. This address is in the pc register in the fetch stage, but not yet available in the decode stage, so we need to pass it in the output of the fetch stage.

Now, we can implement AUIPC similar to LUI in the decode stage.

Now, JAL and JALR are control flow instructions, which mean we'll have to somehow change the value of the pc register in the fetch stage. This requires changes in at least 3 modules as well as some testing. This is a bit too much work for this lesson; we'll just work on the "low-hanging fruit" now, and will return to the instructions that require more work later.

Now, BEQ, BNE, BLT, BGE, BLTU, and BGEU are control flow instructions as well, so we skip them too.

We'll also skip LB, LH, LW, LBU, LHU, SB, SH, SW because these are memory operations and we haven't implemented memory yet. So far, this is going excellent.

Now, we arrive at a bunch of instructions that have the same opcode (but a different value for the funct3 field): ADDI, SLTI, SLTIU, XORI, ORI, ANDI.

First, we want to recognize these instructions.

We have implemented ADDI before, so we can just add that code back.

The other instructions are very similar, but the exact operation that is executed in the execute stage is slightly different. So we can structure the code a bit differently to take advantage of the similarity.

Now we add a couple of operations so that we can decode SLTI, SLTIU, XORI, ORI, ANDI.

Now we still have to implement these operations in the execute module.

OP_SLT compares two operands as signed numbers, and sets 1 when the first operand is less than the second.

OP_SLTU is similar but works on unsigned operands.

OP_XOR, OP_OR, and OP_AND are similar and simple to implement.

Now, SLLI, SRLI, and SRAI are similar to eachother but different from the instructions we just implemented, but for some reason all share the same opcode. I'll put these three instructions above the ones we just implemented, so that we can use slightly less logic.

Again, we add operations to implement the decoding of these instructions.

Then we implement the operations themselves. The shift instructions are a bit weird. The manual mentions

The operand to be shifted is in rs1, and the shift amount is encoded in the lower 5 bits of the I-immediate field.

This means that you can shift by at most 31 bits. Janky as hell in my opinion, but we're just implementing the spec, not making it.

A nice way of implementing shifts by a variable number of bits, say n, is two do the shift as a sequence of shifts of powers of two. If n is 5-bits, and the most significant bit of n is set, we shift by 16 bits. If the next bit is set, we shift by 8 bits, etc., etc. At the end, we'll have shifted by n bits.

This is a big change, but it's (almost) the same verbose code. In fact, we can merge the implementations of the two right shifts (SRL and SRA).

Moving on; almost all of the instructions with opcode 0110011 are register-register versions of instructions we already implemented. The SUB instruction is the only exception.

As usual I'll add placeholders first.

Now we'll add the implementation.

Now, we just have to implement OP_SUB in the decoder.

OK, phew. Just a couple of oddball instructions left. FENCE is used for memory ordering. We don't even have memory yet, so for now we'll make this a NOP.

Now, FENCE.TSO and PAUSE are special cases of FENCE, which we already handle. So we can skip them; We'll look if we can do something better later.

ECALL and EBREAK are traps, which we have not implemented yet. So I'll add the logic to be able to easily decode them later, but otherwise ignore them.

Now that we're done, let's add back our custom "LED" and "HANG" instructions.

Phew, we added a lot of instructions! We added the decoding for all instructions and actually implemented about half of all the instructions in the basic RV32 ISA. Not bad for a single lesson.

Did we forget anything? Testing, you say?
